DGIS-12s
DigiGel ( DGIS-12s )
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Silver stain gel, Western blot membrane etc.
Specification:
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Silver stain gel, Western blot membrane etc.
Specification:
1.High resolution 24,000,000 pixels
2.Sensitivity setting: ISO = 100-12000
3.Image capture: Color, B&W
4.Monitor: 7 inch display Gel image (HDMI)
5.Directly operation: don't need computer control, protect from EtBr contaminate
6.Image can be transfer to computer via cable or memory card transfer or wifi.
7.Long time exposure: 1/4000 second - 60 second.
8.Aperture range : maximum F4.0(W) / F6.0(T)
9.Reflective light source: 4W x 2 tubes / white light , (option) e.g. UV 365nm, 254nm, 306nm.
10.Manual zoom in , zoom out, focus.
11.Moveable dark hook for easy transfer from UVlight box to white light box.
12. Fit on any kind of UV transilluminator or blue light box (option: platform adapter)
FGIS-3

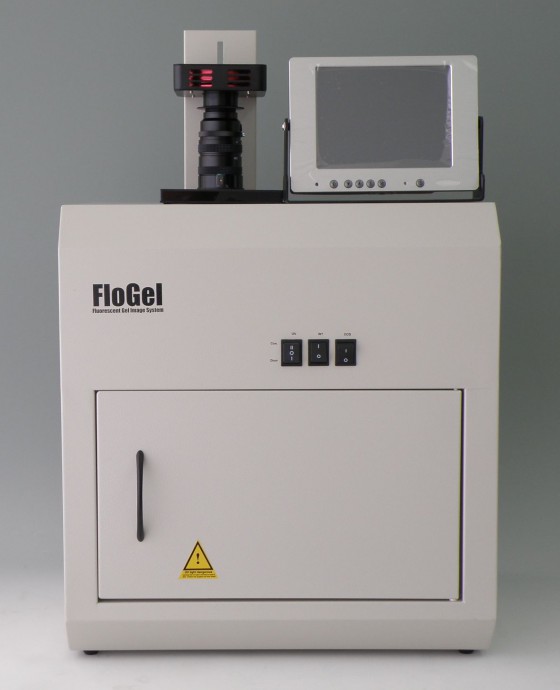

FloGel ( FGIS-3 )
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Realtime electrophoresis , chemiluminescence
Specification:
1. 1/2inch, grayscale, Cool CCD -25 oC ( bellow ambient ), high sensitive detecting system.
sensitivity <0.01ng
2. Chip resolution :1391x1039=1,440,000pixels, ( Max.5,700,000)
3. Preview resolution:1391x1039.
4. Exposure time : 0.001 second - 10 hours.
5. Filter selector: 4 filter well, rotating change, include insert hole which is easily to access and
install filters in this full dark box.
6. Quantitative depth: 16bit , grayscale = 65535.
7. Filter : Standard include EtBr filter( wavelength= 595nm ), Option: other wavelength /
440nm, 530nm, 630nm
8. Setting sequence capture: automatic catch 1-10 images with different exposure time and auto save.
9. Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
10. White light source: reflective, 8WX2 tubes, Option : other wavelength light source UVA, UVB, UVC
11. Safety door can automatic shot down the UV Light when door is open or continuous lighting on for
view actual gel or cutting gel
12. Option: can install multi-wavelength light source ( 440nm , 530nm, 590nm , 630nm. Etc.) and
flexible light source for Realtime electrophoresis or Multi-color fluorescent images .
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Realtime electrophoresis , chemiluminescence
Specification:
1. 1/2inch, grayscale, Cool CCD -25 oC ( bellow ambient ), high sensitive detecting system.
sensitivity <0.01ng
2. Chip resolution :1391x1039=1,440,000pixels, ( Max.5,700,000)
3. Preview resolution:1391x1039.
4. Exposure time : 0.001 second - 10 hours.
5. Filter selector: 4 filter well, rotating change, include insert hole which is easily to access and
install filters in this full dark box.
6. Quantitative depth: 16bit , grayscale = 65535.
7. Filter : Standard include EtBr filter( wavelength= 595nm ), Option: other wavelength /
440nm, 530nm, 630nm
8. Setting sequence capture: automatic catch 1-10 images with different exposure time and auto save.
9. Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
10. White light source: reflective, 8WX2 tubes, Option : other wavelength light source UVA, UVB, UVC
11. Safety door can automatic shot down the UV Light when door is open or continuous lighting on for
view actual gel or cutting gel
12. Option: can install multi-wavelength light source ( 440nm , 530nm, 590nm , 630nm. Etc.) and
flexible light source for Realtime electrophoresis or Multi-color fluorescent images .
VideGel
VideGel ( VGIS-4 )
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Realtime electrophoresis , chemiluminescence
Specification:
1. 1/2inch, grayscale, Cool CCD -25℃( bellow ambient )
high sensitive detecting system. sensitivity <0.01ng
2. Chip resolution :1,440,000pixels, Image resolution: 5,700,000 pixels
3. Exposure time : 0.001 second - 10 hours.
4. Quantitative depth: 16bit , grayscale = 65535.
5. Filter : Standard include EtBr filter( wavelength= 595nm ),
6. Sequence capture: automatic catch 1-10 images with different exposure
time and auto save.
7. Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
8. White light source: reflective, 4WX2 tubes, Option : other wavelength light
source UVA, UVB, UVC
9. Conncet with thermal printer and printout high quality gel image.
10. Moveable dark hook for easy transfer from UV light box to white light box
Description:
Simple gel documentation , capture gel image for DNA , RNA , protein etc.
affordable price, easy setup.
Application:
EtBr Gel , SYBR Green Gel , SYPRO Orange Gel , SYPRO Red Gel ,
SYPRO Ruby Gel , Commasie blue Gel , X-ray film , Colony plate ,
Western blot , TLC plate , Realtime electrophoresis , chemiluminescence
Specification:
1. 1/2inch, grayscale, Cool CCD -25℃( bellow ambient )
high sensitive detecting system. sensitivity <0.01ng
2. Chip resolution :1,440,000pixels, Image resolution: 5,700,000 pixels
3. Exposure time : 0.001 second - 10 hours.
4. Quantitative depth: 16bit , grayscale = 65535.
5. Filter : Standard include EtBr filter( wavelength= 595nm ),
6. Sequence capture: automatic catch 1-10 images with different exposure
time and auto save.
7. Zoom Lens: 8-48mm / F1.2, ( Option: 8-48mm / F1.0 )
8. White light source: reflective, 4WX2 tubes, Option : other wavelength light
source UVA, UVB, UVC
9. Conncet with thermal printer and printout high quality gel image.
10. Moveable dark hook for easy transfer from UV light box to white light box
